Top 3 advantages of 5 return LiDAR

5 return LiDAR

LiDAR is a technology that uses laser pulses to measure the distance and shape of objects. LiDAR can be used for many applications, such as mapping, forestry, archaeology, and autonomous driving.

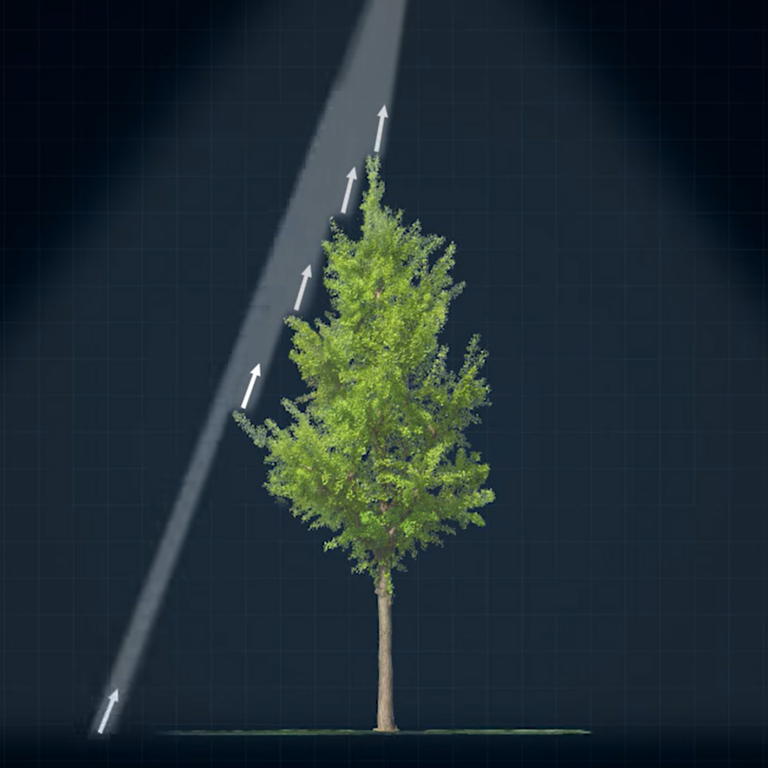

One of the key features of LiDAR is the ability to record multiple returns from a single laser pulse. This means that LiDAR can detect different layers of objects within the laser beam, such as the top of a tree, its branches, and the ground. The number of returns that a LiDAR system can record depends on the capabilities of the laser scanner and the characteristics of the target.

Some LiDAR systems can record up to five returns per pulse, which is known as 5 return LiDAR. This type of LiDAR has several advantages over systems that record fewer returns, such as:

  1. More information: 5 return LiDAR can provide more information about the structure and composition of the target, especially in complex environments like forests. For example, 5 return LiDAR can help identify different types of vegetation, estimate biomass, and measure canopy height and density.
  2. Improved accuracy: 5 return LiDAR can reduce the errors and uncertainties in the measurement of distance and elevation, especially in areas with steep slopes or rough terrain. For example, 5 return LiDAR can help improve the accuracy of digital elevation models (DEMs) and contour maps.
  3. Better versatility: 5 return LiDAR can be used for a wider range of applications and analyses, as it can capture more details and features of the target. For example, 5 return LiDAR can improve the detection and classification of objects like buildings, bridges, power lines, and archaeological sites.

In conclusion, 5 return LiDAR is a valuable technology that can enhance the quality and utility of LiDAR data. By recording multiple returns from a single laser pulse, 5 return LiDAR can provide more information, accuracy, and versatility for various applications and analyses.
