In land surveying, producing precise and accurate deliverables is paramount. 3-dimensional transformations play a vital role in ensuring that drone survey data aligns seamlessly with local project coordinate systems, offering several compelling advantages that make it the TopoMatters method of choice when delivering survey data products.
Understanding the 7-Parameter Transformation
The 7-parameter transformation involves applying a set of mathematical transformations—translation, rotation and scale – to spatial data. These parameters are used to adjust the position, orientation, and scale of drone survey data relative to a reference coordinate system.
This method is particularly effective in correcting geometric distortions and aligning aerial imagery or point cloud data captured by drones with precision and consistency.
Key Benefits of the 7-Parameter Method for Drone Surveys
Accuracy and Precision: The method ensures accurate alignment of drone-captured data with ground control points or reference datasets, essential for high-resolution mapping and analysis.
Repeatability and Consistency: By applying standardized mathematical models, the 7-parameter method offers repeatable results across different surveying projects and datasets, minimizing errors and discrepancies, especially in projects with multiple phases of data collection.
Efficiency: Automation of the alignment process saves time and resources, enabling faster turnaround in data processing and analysis workflows.
Suitability for Large Datasets: Ideal for handling large volumes of drone survey data efficiently, ensuring uniform spatial alignment across a large project area.
Drone Survey Data Processing with TopoMatters
When kicking off a new survey project, our PLS partner is requested to provide coordinate pairs for five project points, ideally covering the extent of the survey area. Each coordinate pair consists of latitude, longitude, and ellipsoid height (in meters), along with the associated target local northing, easting, and elevation.

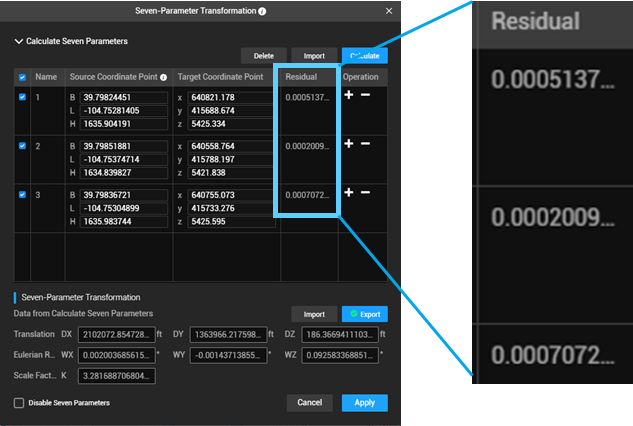

Using a minimum of three points, we calculate the 7-parameter transformation, reproject the sample points, and review the transformation residuals.
With a strong transformation model, TopoMatters projects the drone data directly to the local coordinates. This offers both an accuracy advantage and a streamlined workflow compared to manual alignment practices. Before post-processing derivative deliverables such as CAD linework or a Civil 3D surface, a quality check is conducted using ASPRS methodologies to ensure the project data tolerance requirements have been achieved.
Conclusion
In the rapidly evolving field of drone surveying, the 7-parameter method stands out as a reliable, repeatable and efficient approach for achieving precise spatial alignment of aerial data. Its ability to ensure accuracy, repeatability, and integration with survey workflows makes it indispensable for professionals seeking to leverage drone technology for detailed survey data and mapping projects.
