Terrain following to maintain accuracy and map quality

Quality Data in Variable Terrain

by constructiongisplanning and designtechnologyUncategorized

When it comes to collecting accurate data through remote sensing technologies, terrain awareness and ground sampling distance (GSD) are two crucial factors to consider. The terrain of a given area can significantly impact the accuracy and resolution of data collection, making it important to understand its impact on GSD. This is particularly relevant in Colorado, where the diverse terrain includes mountains, valleys, and plateaus, creating unique challenges for remote sensing data collection.

Ground sampling distance refers to the physical size of each pixel in an image, representing the area on the ground that is covered by each pixel. The smaller the GSD, the higher the resolution of the image and the more details can be captured. In other words, a smaller GSD means that the image can capture smaller features and finer details. GSD is determined by the altitude and speed of the sensor as well as the angle of the camera, and it is influenced by the terrain of the area being surveyed.

Terrain can impact GSD in a few ways. For example, in areas with significant elevation changes, such as mountainous regions, it can be difficult to achieve a consistent altitude, resulting in varying GSD throughout the image. This can lead to inconsistencies in the quality and accuracy of the data collected, which can have significant implications for decision-making processes based on that data.

Colorado’s diverse terrain, which includes high mountains, deep valleys, and vast plateaus, presents unique challenges for remote sensing data collection. In mountainous regions, the altitude changes rapidly, making it difficult to achieve a consistent altitude, resulting in varying GSD throughout the image. This can lead to inconsistencies in the quality and accuracy of the data collected, which can have significant implications for decision-making processes based on that data.

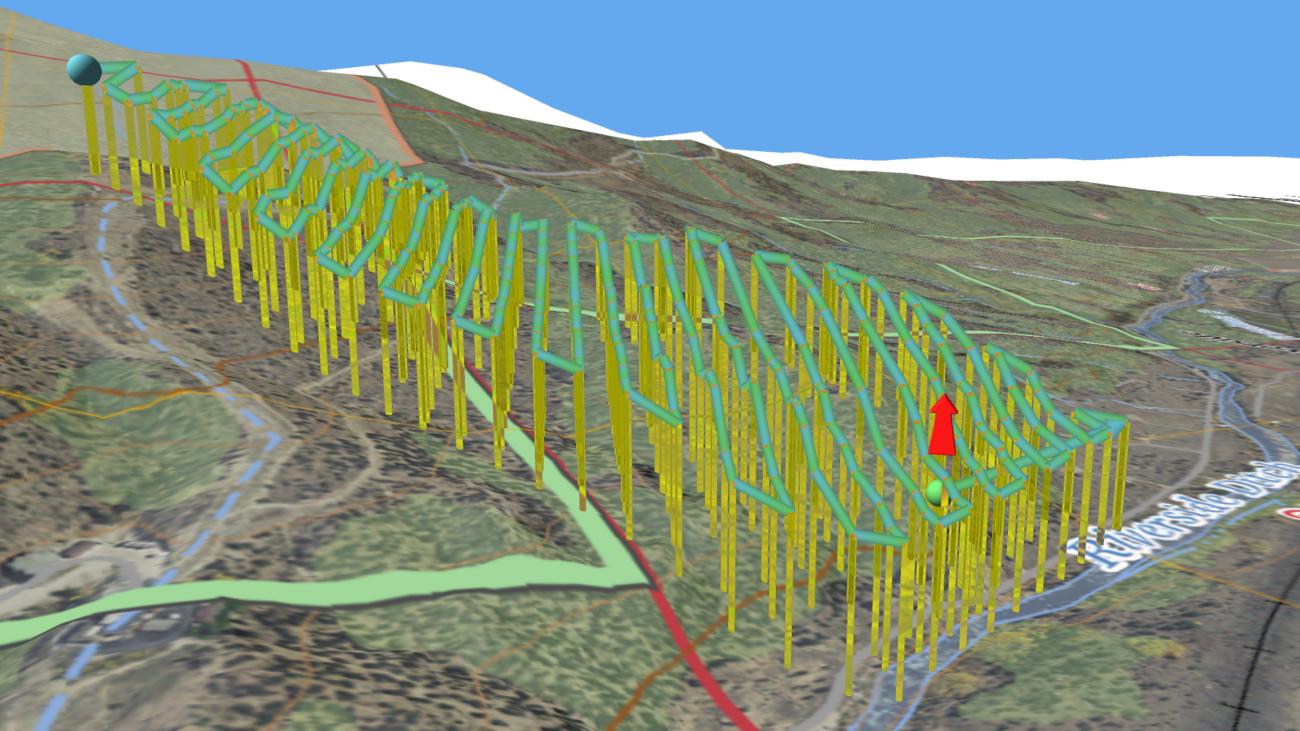

The Solution: Terrain Following Capability

Terrain following can be used to address the challenges posed by diverse terrain when collecting remote sensing data. Terrain following involves adjusting the altitude of the sensor to maintain a consistent ground clearance, following the contours of the terrain being surveyed. By doing so, it is possible to achieve a more consistent ground sampling distance, resulting in higher quality and more accurate data.

In Colorado, terrain following can be particularly useful in mountainous regions, where the terrain changes rapidly and maintaining a consistent altitude can be challenging. By adjusting the altitude of the sensor to follow the contours of the terrain, it is possible to achieve a more consistent ground clearance, resulting in higher quality data.

Conclusion

In conclusion, terrain following is essential when collecting remote sensing data, as it can significantly impact the quality and accuracy of the data collected. Ground sampling distance is a critical factor that must be considered in areas with diverse terrain, such as Colorado, to ensure that high-quality data is collected and used for decision-making processes. By understanding the impact of terrain on GSD, we can better ensure that the data collected is of the highest quality, enabling more informed decision-making processes.

If your project site has variable terrain, ensure your mapping service provider has the technology and know-how to integrate terrain following into the data collection process.

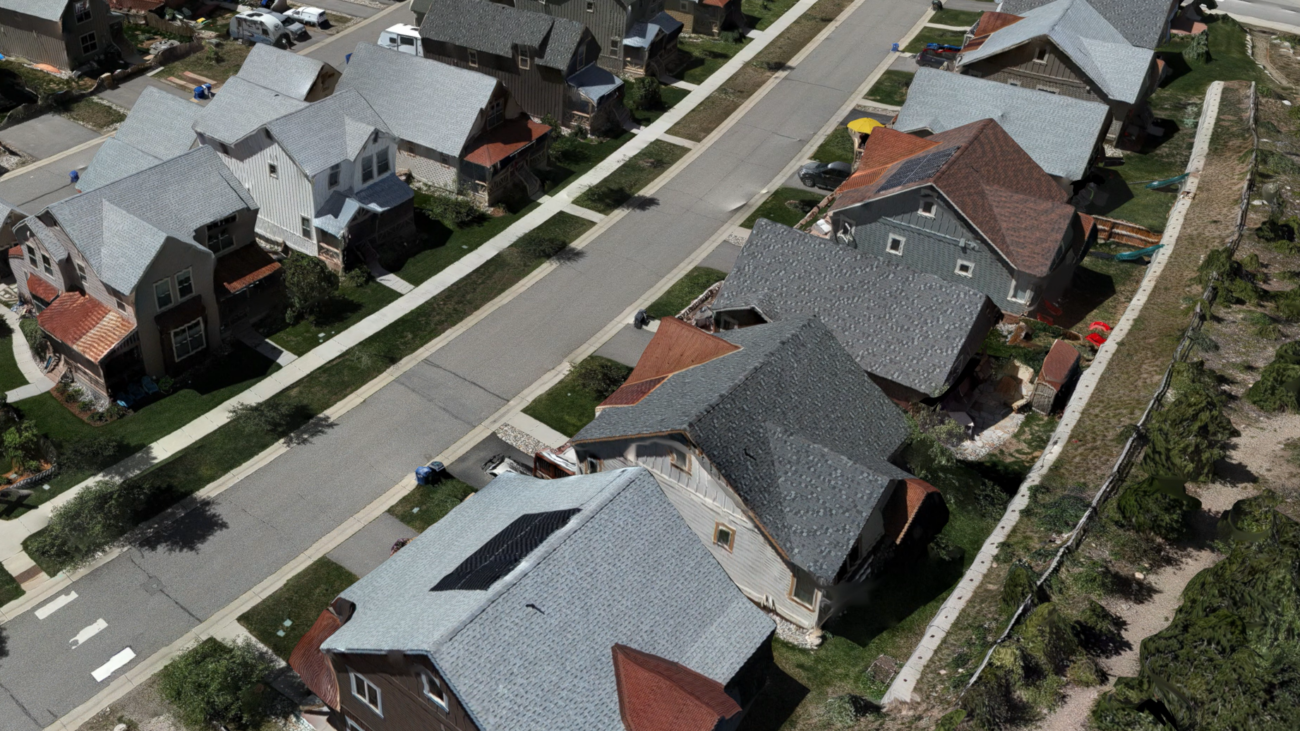

3D modelling

Photogrammetry versus LIDAR, which is better?

by constructionengineeringgisindustryland ownersplanning and designreal estatesurveyingtechnology

Photogrammetry vs LiDAR. Both are popular methods for creating 3D models. Both methods have their advantages and disadvantages, and depending on the use case, one method may be more suitable than the other.

Photogrammetry is the process of using photographs to create a 3D model. The process involves taking a series of overlapping photos from different angles of an object or environment, and using software to stitch them together and create a 3D model. This process is often used in industries such as architecture, engineering, and construction.

One advantage of photogrammetry is that it is relatively easy to capture the data needed to create a 3D model. All that is required is a camera and software, and the process can be done quickly and efficiently. Another advantage is that photogrammetry can capture color and texture information, which can be useful for creating more realistic models.

However, there are some limitations to photogrammetry. The accuracy of the model is dependent on the quality of the photographs and the software used to stitch them together. Additionally, photogrammetry is limited by line-of-sight, meaning that it may not be able to capture the entirety of a complex object or environment.

LiDAR, on the other hand, is a laser-based method of creating 3D models. It involves using a laser scanner to send out pulses of light that bounce off objects and return to the scanner. By measuring the time it takes for the light to return, the scanner can create a 3D map of the object or environment.

One advantage of LiDAR is that it is incredibly accurate, and can capture even the smallest details of an object or environment. Additionally, LiDAR is not limited by line-of-sight, meaning that it can capture complex environments such as forests or urban areas.

However, LiDAR is also more expensive and time-consuming than photogrammetry. It requires specialized equipment and expertise to operate, and the data it produces can be more difficult to process and work with.

In summary, both photogrammetry and LiDAR have their advantages and disadvantages. Photogrammetry is a quick and easy way to capture 3D models with color and texture information, while LiDAR is incredibly accurate and can capture complex environments. Depending on the use case, one method may be more suitable than the other, or a combination of both methods may be used to create the most accurate and detailed 3D model.

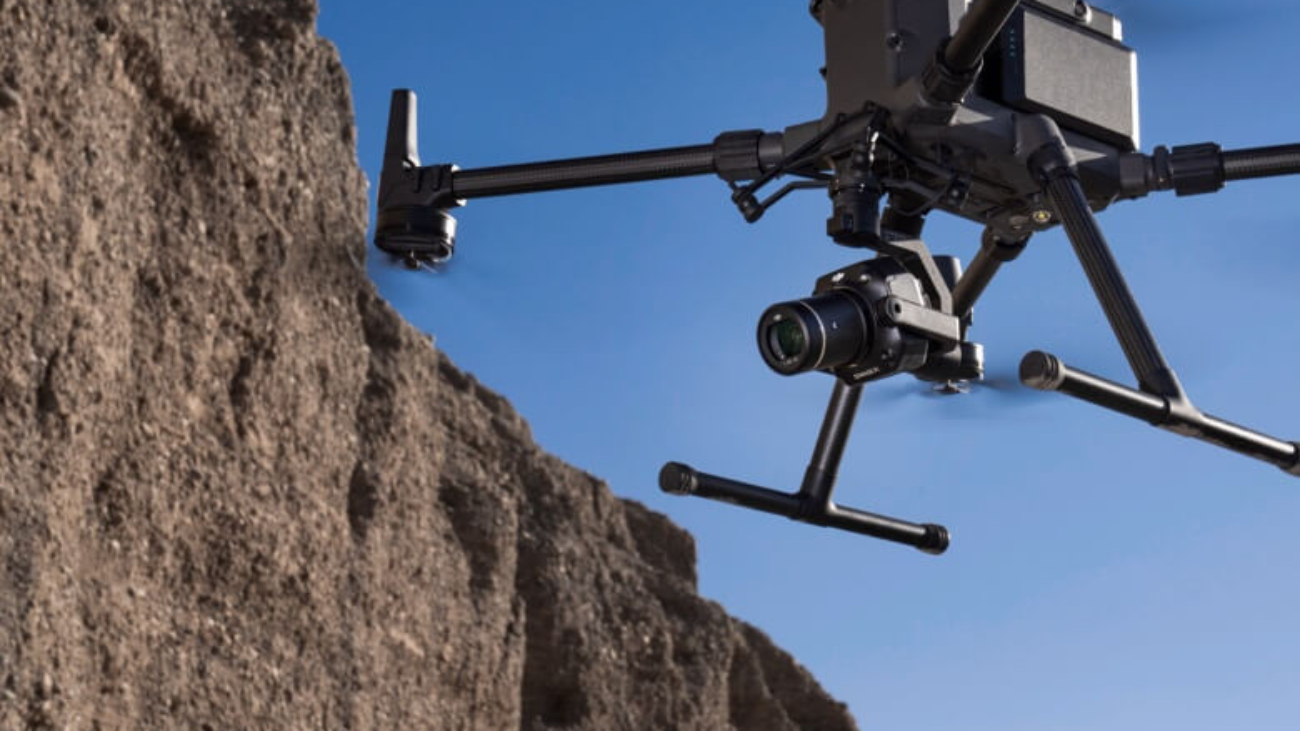

m300+p1

Survey technology in drone mapping

by constructionengineeringgisland ownersplanning and designreal estatetechnology

Drone mapping has become an essential tool for professionals in industries such as construction, agriculture, and surveying. However, ensuring the accuracy of the resulting maps and models can be a challenge. One way to increase the accuracy is through the use of survey technology in drone mapping, including Real-Time Kinematic (RTK) and Post-Processing Kinematic (PPK) techniques. In this blog post, we will explore what RTK and PPK are and how they can improve the accuracy of drone mapping.

What is RTK?

RTK is a technique used to improve the accuracy of GPS positioning by using a fixed base station to provide corrections to the GPS signals received by the drone. The base station receives signals from GPS satellites and calculates its position with high accuracy. The drone then receives these corrections from the base station in real-time, allowing it to improve its own GPS positioning accuracy. RTK can improve the horizontal and vertical accuracy of GPS positioning to within a few centimeters.

What is PPK?

PPK is a technique used to improve the accuracy of GPS positioning after the drone has completed its mission. Instead of receiving real-time corrections from a base station, PPK uses post-processed GPS data to calculate more accurate positioning information. The GPS data from the drone is collected during the mission and then post-processed using specialized software, which compares the drone’s GPS data to the GPS data from a nearby reference station. By comparing these two sets of data, the software can determine the precise position of the drone during the mission.

How can RTK and PPK improve the accuracy of drone mapping?

RTK and PPK can both significantly improve the accuracy of drone mapping. By using RTK or PPK, the drone’s GPS data can be corrected to within a few centimeters, resulting in more accurate maps and models. This level of accuracy is particularly important for industries such as construction and surveying, where precise measurements and positioning information are critical.

RTK and PPK can also reduce the need for ground control points (GCPs). GCPs are physical markers placed on the ground to improve the accuracy of drone mapping by providing known reference points. However, using GCPs can be time-consuming and labor-intensive. By using RTK or PPK, the need for GCPs can be significantly reduced or eliminated altogether.

Conclusion

In conclusion, RTK and PPK are powerful techniques that can significantly improve the accuracy of drone mapping. By using these techniques, professionals like TopoMatters can produce more accurate maps and models, reduce the need for GCPs, and enable more informed decisions. As technology continues to advance, RTK and PPK are likely to become even more essential tools for professionals in the drone mapping industry.
